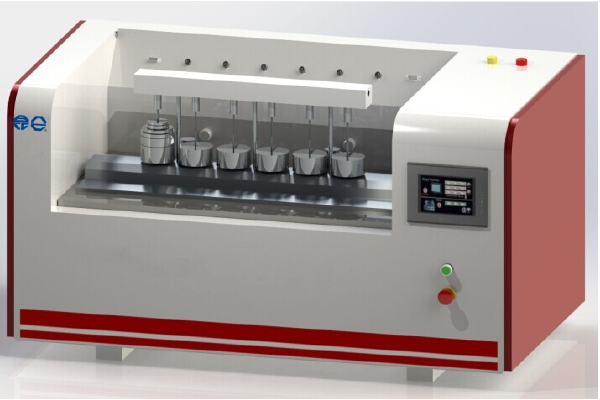

Air Heating Hdt Vicat Testing Machine

Air Heating Hdt Vicat Testing Machine uses PLC programmable controller to adjust temperature and adopts computer to display operation. The product is simple, easy to use with stable performance, high precision, and can be real-time monitoring the test temperature and the amount of deformation during the test; at the end of the test the system will automatically stop heating, and can print the test report and test curves. This series hdt vicat testing machine is the necessary machine for all quality control institutes, universities and enterprises and so on.

Vicat softening point of the polymer is suitable for controlling quality and identifying as an indicator of the thermal performance of new varieties. It does not mean the material temperature.

Air Heating hdt and vicat tester Feature:

1. Sample holder’s up and down can be adjusted.

2. Applicable Material: non-metallit material such as plastics, rubber, nylon, electrical insulating materials.

3. Function: HDT temperature and the vicat softening point temperature

Air Heating hdt and vicat tester Standards:

ISO75 、ISO306 、ISO2507 、ASTM1525 ASTM D648, etc.

Air Heating Hdt Vicat Testing Machine Technical advantages:

1, Air Heating hdt vicat tester Innovative heating methods: the exclusive use of domestic air dielectric heating;

2, Environmental safety: no oil pollution, odor-free after volatile methyl silicone oil, no oil security risks;

3, Large range: it can reach 500 degrees temperature measuring range;

4, High efficiency: forced air cooling system, the cooling rate decreased from 300 ℃ in 5 minutes to room temperature, and the next test can be performed rapidly, while other domestic models takes about twenty-three hours;

5, Precision: no stirring motor, no vibration interference, enabling reliable displacement measurement;

6, Quality Assurance: three-year warranty, within three years any failure by the equipment,  manufacturer is responsible.

Air Heating hdt and vicat tester Main Parameters:

1.Air Heating hdt vicat testerTemperature control range: environment temperature~500℃

2.Heating rate: (120±10)℃/h (12±1) ℃/6min

            (50±5) ℃/h (5±0.5) ℃/6min

3.Temperature display error: 0.1℃

4.Temperature control precision: ±0.5℃

5.Maximum deformation display error: ±0.001mm

6.Deformation measurement range: 0—5mm

7.Sample holder number: 3 or 6

8.Air Heating hdt vicat tester Heating medium: air

9.cooling mode: forced air cooling system

10.Heating power: 5 kw
