- Place of Origin: dongguan
- Brand Name: kunlun
- Model Number: BT2000

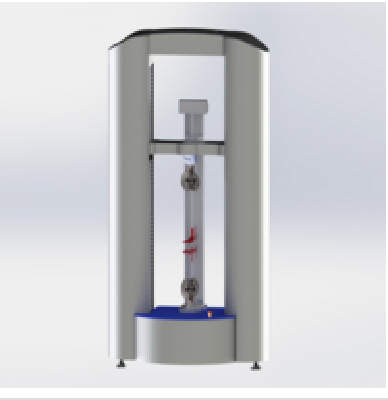

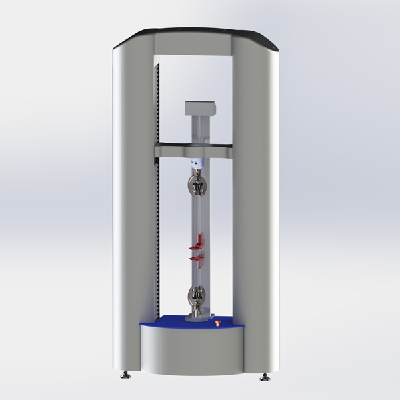

Universal Material tensile strength Testing Machine Product introduction:
Universal tensile strength tester It is widely used in material tests and analysis of building materials,aerospace, machinery manufacturing, wire and cable, rubber, plastics, textiles, home appliances and other industries, which now is ideal test equipment of scientific research institutions, colleges, industrial and mining enterprises, technical supervision, inspection and arbitration department.
Best servo motor- American Kollmorgen I.D Goldline series servo motor; Germany HBM force sensor;
imported precision grinding screw; NEUGART planet speed reducer; Goodyear synchronous pulleys; Ultra
high strength rack.
All the relatively advanced technologies are gathered together and make it perfect. High-end
elegant molding, satisfying your demanding, personalized needs by providing customized software according
customers’ requirements including operation interface and test methods.
- Place of Origin: dongguan
- Brand Name: kunlun
- Model Number: BT2000
Universal tensile strength tester main technical parameters:
Universal Material tensile strength testing machine Load | 1, 5, 10, 20, 50, 100, 200, 500, 1000, 2000, 5000, 10000, 20000Kg |
Force resolution | 1/100000~1/1000000 |
Force accuracy | ≤0.5% |
Power magnifying multiples | seven segment |
Displacement resolution | 1/1000 |
Displacement accuracy | ≤0.3% |
Power units | Kg, N, KN, g, lb; displacement unit: mm, cm, inch |
Metal extensometer resolution | 1/1000(need negotiation) |
Metal extensometer accuracy | ≤0.5% |
Large deformation extensometer | ±1mm(need negotiation) |
Speed range | 0.001mm / min ~ 1000mm / min (special speed testing can also be customized) |
Walking space | 1000mm (Holder is included and special test space can also be customized) |
Test Width | 400mm (special test width can be customized according to customer requirements) |
Power supply | 220V 50HZ or using 110V power supply according to customer requirements |
Machine Size | about 500 × 500 × 1800 mm (L × W × H) |
Machine weight | about 250~800KG |
